Pandar128

Image-Like Resolution, High-Performance,
360° Spinning Lidar
Pandar128 Image-Like Resolution, High-Performance Lidar

High Resolution

0.1° horizontal resolution(@10 Hz)
*White full-size SUV
Pandar128
Pandar64
Other 128-channel 360° spinning lidar

Key Specifications

Point Rate
3,456,000 points/second (single return)
6,912,000 points/second (dual return)
Resolution
0.1° Finest horizontal resolution (10 Hz)
0.125° Finest vertical resolution
Range
200 m@10%
*100 klux, PD>70%, FAR<1e-5
Operating Temperature
-40° ~ 85°C
Accuracy
±2 cm (1 to 200 m)
Ingress Protection
IP6K9K & IP6K7
Functional Safety - compliant to ISO 26262
Comprehensive functional reporting for all lasers
Cyber Security – compliant to ISO 21434
Encryption to safeguard against data breaches

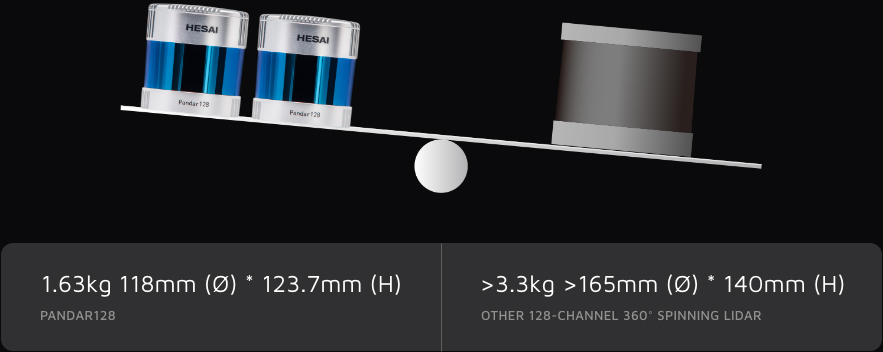

Compact and Lightweight

Optimized system architecture
Pandar128
1.63 kg 118 mm (Ø) * 123.7 mm (H)
Other 128-channel 360° spinning lidar
>3.3 kg >165 mm (Ø) * 140 mm (H)

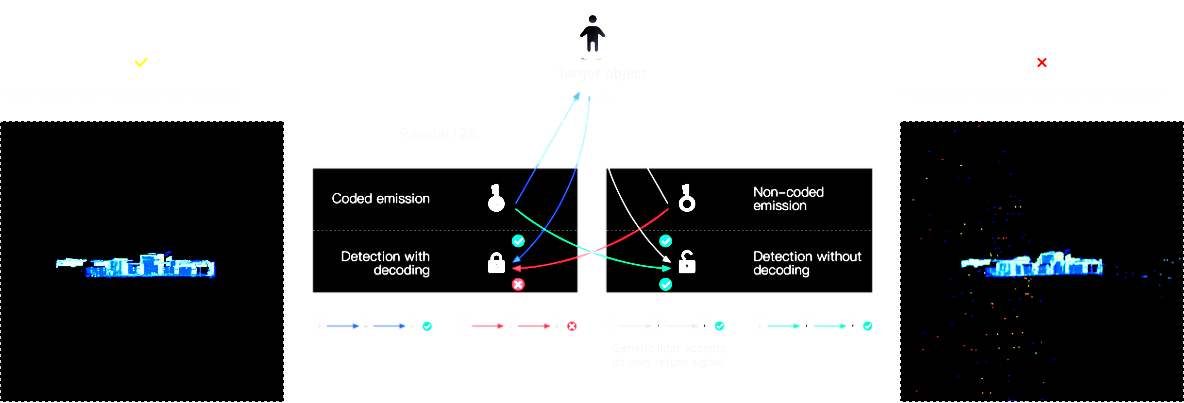

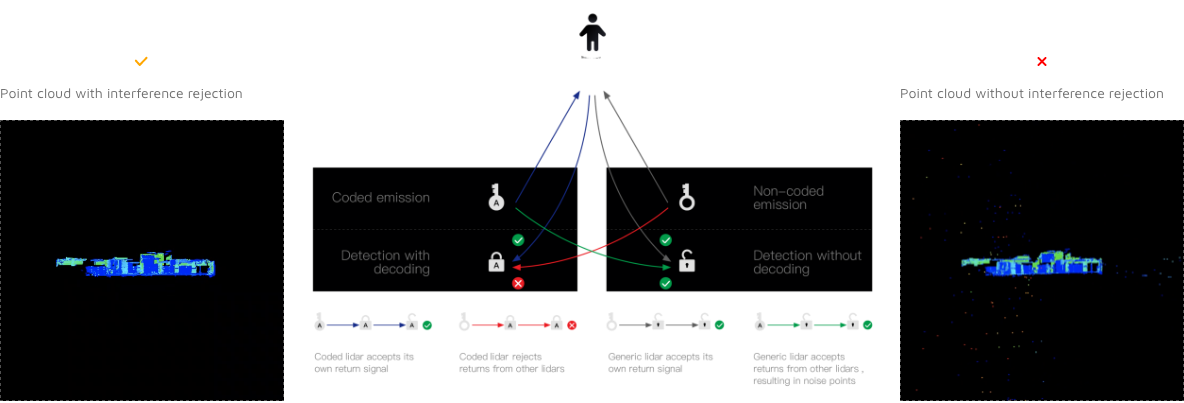

Interference Rejection

Every pulse has its own 'fingerprint'
*Interference rejection schematic diagram
Point cloud with interference rejection
Point cloud without interference rejection

Image-like Point Cloud Performance

Point rate up to 3,456,000 points/sec (single return)

Automotive-Grade Reliability

DV tests based on international OEM standards; covered more than 50 reliability tests. Designed lifetime is over 30,000 hours (typical).
*The appearance of products published on this website may vary due to screen display settings, production batches, and customization. Please refer to the actual sample/product; The product specifications shown on this website are typical values under specific test conditions and may slightly vary due to production batches, firmware and hardware versions, as well as application conditions. Please refer to final factory inspection. For product certification information, please refer to official certifications. Hesai reserves the right of final interpretation of the information on this website.
*Please read the relevant safety precautions before using the product.
