Products
AT
Automotive Long-Range Lidar, Ultra-High Resolution
AT128
ET
Automotive Long-Range Lidar, Behind Windshield Installation
ET25
FT
Automotive Short-Range Lidar, Fully Solid State
FT120
Pandar
All-Around Performance, 360° Coverage
Pandar128
Pandar64
Pandar40P
Pandar40M
QT
Near-Range Detection, Ultra-Wide View
QT128
QT64
XT
Superior Precision, Cost-Effective Solution
XT32 / XT16
Remote
Methane Leak
Detector
Faster Response, Longer Range
Handheld
Drone-Mounted
Compare
AT128
1,536,000 points/s
Data Points
1200 × 128
Overall Resolution
200 m@10%
Range
120° × 25.4°
Field of View
137 mm × 112 mm × 48 mm
Dimensions
0.1° (H) × 0.2° (V)
Resolution
ET25
225 m @10% Reflectivity
Range (With Windshield)
120° (H) x 25° (V)
FOV
0.05° (H) x 0.05° (V)
Angular Resolution (Finest)
140 x 110 x 25 mm
Size (W x D x H)
>3,000,000 pts/s
Data Rate
12 W
Power Consumption
FT120
160 (H) x 120 (V)
Overall Resolution
100° (H) x 75° (V)
FOV
192,000 pts/s (Single Return)
384,000 pts/s (Dual Return)
Data Points Generated (@10 Hz)
0.1 m ~ 100 m
Instrument Range
0.625° (H) × 0.625° (V)
Angular Resolution
10Hz; 20Hz
Frame Rate
Pandar128
128
Channel
3,456,000 pts/s (Single Return)
6,912,000 pts/s (Dual Return)
Data Points
0.1° (10 Hz)
Horizontal Resolution
0.3 ~ 200 m*
* 10% reflectivity, 100 klux, PD>70%, FAR<1e
-5
Range
Finest at 0.125°
Vertical Resolution
Pandar64
64
Channel
0.3 ~ 200 m (10% reflectivity)
Range
40° (-25° ~ +15°)
Vertical FOV
0.2° (10 Hz) , 0.4° (20 Hz)
Horizontal Resolution
Finest at 0.167°
Vertical Resolution
Pandar40P
40
Channel
0.3 ~ 200 m (10% reflectivity)
Range
40° (-25° ~ +15°)
Vertical FOV
0.2° (10 Hz) , 0.4° (20 Hz)
Horizontal Resolution
Finest at 0.33°
Vertical Resolution
Pandar40M
40
Channel
0.3 ~ 120 m (10% reflectivity)
Range
40° (-25° ~ +15°)
Vertical FOV
0.2° (10 Hz) , 0.4° (20 Hz)
Horizontal Resolution
Finest at 0.33°
Vertical Resolution
QT128
128
Channel
20 m (10% reflectivity)
Range
105.2° (-52.6° ~ +52.6°)
Vertical FOV
Finest at 0.4° @10 Hz
Horizontal Resolution
Finest at 0.4°
Vertical Resolution
QT64
64
Channel
20 m (10% reflectivity)
Range
104.2° (-52.1° ~ +52.1°)
Vertical FOV
0.6°
Horizontal Resolution
Finest at 1.45°
Vertical Resolution
XT32 / XT16
32
Channel
0.5 cm (1σ precision)
Range Precision
0.05 ~ 120 m*
Range
1°
Vertical Resolution
31° (-16° ~ +15°)
Vertical FOV
16
Channel
0.5 cm (1σ precision)
Range Precision
0.05 ~ 120 m*
Range
2°
Vertical Resolution
30° (-15° ~ +15°)
Vertical FOV
Handheld
200 m (82% diffuse reflectivity,
15000 ppm*m methane gas concentration)
Detection Range
5 (actual) ppm*m
Sensitivity
±10% (100 ~ 50000 ppm*m)
Measurement Accuracy
5 ms
Response Time
0.76 kg
Weight (with battery and sight)
Drone-Mounted
400 m (82% diffuse reflectivity,
15000 ppm*m methane gas concentration)
Detection Range
5 (actual) ppm*m
Sensitivity
±10% (100 ~ 50000 ppm*m)
Measurement Accuracy
5 ms
Response Time
<600 g
Weight
Products
AT128
ET25
FT120
Pandar
Pandar128
Pandar64
Pandar40P
QT
QT128
QT64
XT32 / XT16
Remote Methane Leak Detector
Handheld
Drone-Mounted
Compare
Industries
ADAS
Autonomous Mobility
Trucking
Robotics
Industrial
Distributors
Newsroom
Company
About Us
Careers
Contact Us
Investors
Resources
Downloads
Technical Support
中/
EN
Products
AT128
ET25
FT120
Pandar
Pandar128
Pandar64
Pandar40P
QT
QT128
QT64
XT32 / XT16
Remote Methane Leak Detector
Handheld
Drone-Mounted
Compare
Industries
ADAS
Autonomous Mobility
Trucking
Robotics
Industrial
Distributors
Newsroom
Company
About Us
Careers
Contact Us
Investors
Resources
Downloads
Technical Support
Latest News
Type
Type
Type
Type
None
Use Cases (8)
News Release (59)
Blog (31)
Tags
Tags
Tags
Tags
None
XT32
XT
Trucking
Security
Robotics
QT128
Pandar
ISO
Industrial
FT120
Dates
Dates
Dates
Dates
Clear
Blog
Autowise.AI Rapidly Expands its Multi-Scene Commercial Plan through “Sharp Eyes”
ADAS
Robotics
Since the emergence of the COVID-19 […]
2022-06-10
Read More
News Release
Hesai Appoints Bob in den Bosch as Senior Vice President of Global Sales
ADAS
May 24th, 2022 – Hesai Technology ( […]
2022-05-24
Read More
Blog
Empowered by Hesai Lidar, Boonray Technology's Autonomous Mining Trucks Are Ushering In a New Approach to Mining
ADAS
Trucking
Due to their unique geographical co […]
2022-05-09
Read More
News Release
Hesai Reached Strategic Cooperation with WeRide, Leading the Application of Hybrid Solid-State Lidar on L4 Autonomous Vehicle
ADAS
AT128
Pandar
The two companies will join force t […]
2022-04-29
Read More
News Release
Hesai Selected Once Again as “China Leading Autotech 50” by KPMG
ADAS
AT128
On April 14th, KPMG released its 5t […]
2022-04-24
Read More
News Release
Empowered by Hesai’s Lidar, Lotus’ Eletre Brings “Track-Level” Intelligent Driving to Reality.
ADAS
AT128
On March 30, 2 a.m. Beijing time, L […]
2022-04-07
Read More
News Release
Equipped with Hesai’s AT128 Lidar, This is How Li Auto L9 Defines Intelligent Vehicle
ADAS
AT128
In the era of intelligent vehicle, […]
2022-04-07
Read More
News Release
Hesai Technology Showcases New Automotive-Grade Hybrid Solid-State Lidar AT128 at CES 2022
ADAS
AT128
Las Vegas, Jan. 6, 2022 - Hesai Tec […]
2022-01-06
Read More
Use Cases

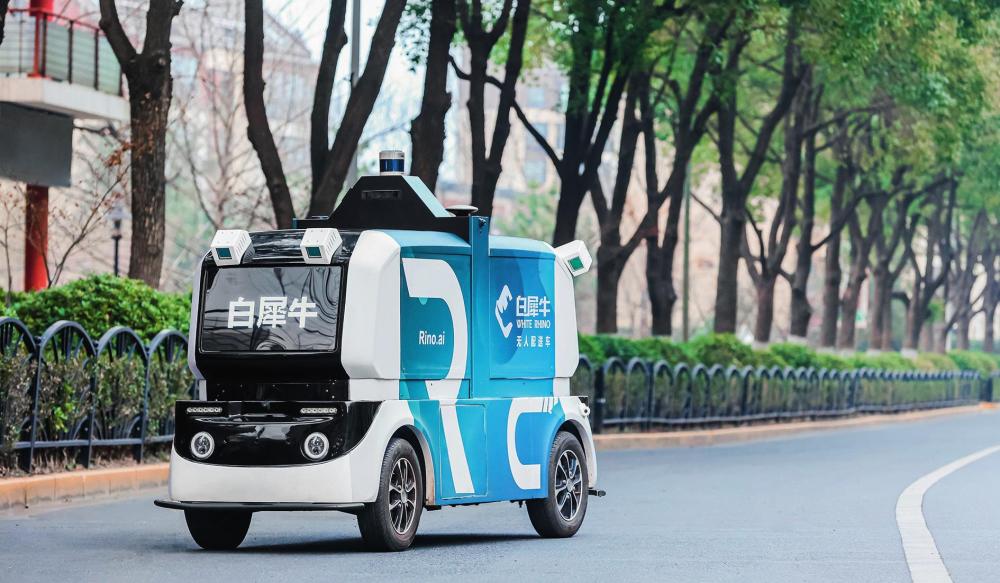

Having Robots Deliver Your Daily Meals – The “Secret” Behind It All
