FT120

Fully Solid-State Short-Range Blind Spot Lidar
Automotive Grade, Designed for ADAS Series Production Vehicles

FT120 Fully Solid-State Short-Range Blind Spot Lidar

Fully Solid-State E-Scanning

Greater Performance, Higher Reliability, Designed for Series Production

Key Specifications*

Instrument Range
0.1 m ~ 100 m
FOV
100° (H) x 75° (V)
Pixel Resolution
160 (H) x 120 (V)
Point Rate(@10 Hz)
192,000 pts/s (single return)
384,000 pts/s (dual return)
Angular Resolution
0.625° (H) x 0.625° (V)
Frame Rate
Typ. 10 Hz
Precision
5 cm (1σ)
Size
50.0 x 70.0 mm (Minimum Surface Window)
68.0 x 75.0 x 90.0 mm (W x H x D)
Power Consumption
<12 W
Ingress Protection
IP6K9K & IPX7
* Product is customizable per customer's needs. Currently displayed pictures, animation, and videos do not represent the final product. Please refer to the mass production version for actual product appearance, size, and specifications.


Small and Compact, All-Around Perception

100° x 75° ultra-wide FOV, zero blind spot, providing real-time perception of small objects, tall street signs, pavement markings and more.

AT + FT Auto-Grade Lidar Full Solution

Long and short range combination, providing all-around 3D perception for the vehicle.

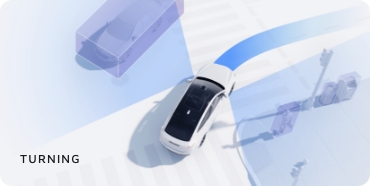

Turning

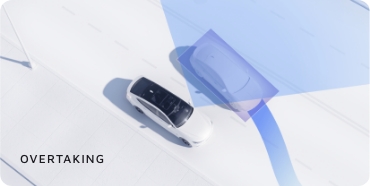

Overtaking

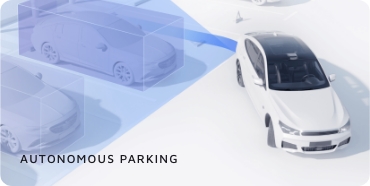

Autonomous Parking

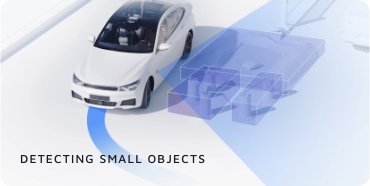

Detecting Small Objects

Real Point Cloud

Eliminating blind spots for intelligent vehicles.
AT128

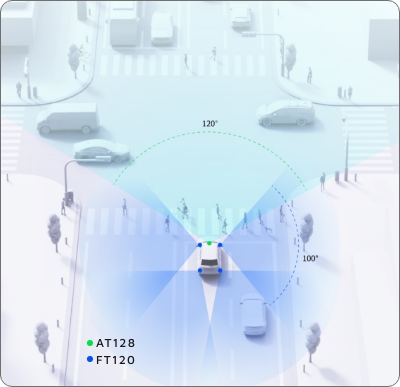

AT128 + FT120

FT120
